Knowing how to read a chord chart lets you pick up a song quickly and follow a band, a jam, or a group without waiting for a tab. The symbols look cryptic at first, but they follow a small set of conventions. This lesson sits alongside music theory for guitar.
Quick answer: A chord chart lists the chords of a song, usually in measures separated by bar lines, and each chord lasts until the next one appears. Chord diagrams show fingerings: vertical lines are strings, horizontal lines are frets, dots are fingers, X means mute, and O means open. A slash chord such as G/B means play G with B in the bass.
Disclosure: some links in this guide are affiliate links. As an Amazon Associate, Sandy Music Lab earns from qualifying purchases at no extra cost to you, and commissions never decide which products make a list. See our editorial policy.
🎸 Free download
Not sure which guitar is right for you?
Get the free Guitar Gear Cheat Sheet: match your style, budget and hands to the right guitar in 2 minutes. You’ll also get my 30-Day Practice Plan as a bonus.
Send My Cheat Sheet →How do you read a guitar chord diagram?

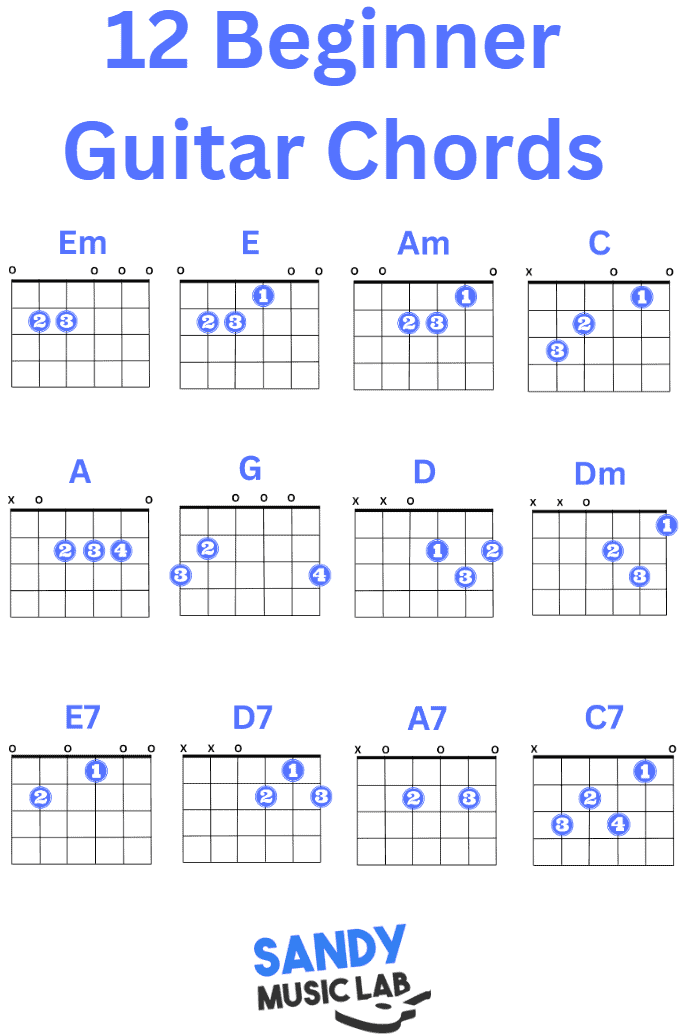

A chord diagram, also called a chord box, is a picture of the fretboard standing upright. Vertical lines are the six strings, with the far left as the low E and the far right as the high E. Horizontal lines are the frets, and a thick line at the top is the nut.
Dots show where to press. Numbers in or under the dots show which finger to use: 1 index, 2 middle, 3 ring, and 4 pinky. An X above a string means do not play it. An O means play it open. A curved line or bar across several strings means a barre with one finger. A label such as “5fr” means the top line is the 5th fret, not the nut.
Tab and chord boxes are oriented differently, which surprises many players; see why guitar tabs are drawn upside down. For shapes to practice, the site’s free guitar chord charts show each chord with an easier version and the notes it contains. That page is linked only and is not edited here.

What do the chord symbols on a chart mean?
The letter is the root, and the text after it tells you the chord type. A plain C is C major. Cm or C- is C minor. A plain 7 is a dominant 7th, while maj7 (or a triangle) is a major 7th. The table below lists the symbols you will see most often.
For more on 7th symbols and shapes, see the 7th chords guitar guide. You can also look up a voicing with the site’s chord finder, which is linked only and not edited.
| Symbol | Meaning | Example notes |
|---|---|---|
| C | C major | C E G |
| Cm or C- | C minor | C Eb G |
| C7 | C dominant 7 | C E G Bb |
| Cmaj7 or CΔ7 | C major 7 | C E G B |
| Cm7 | C minor 7 | C Eb G Bb |
| Csus4 / Csus2 | 3rd replaced by 4th / 2nd | C F G / C D G |
| Cadd9 | C major plus the 9th | C E G D |
| Cdim or C° | C diminished | C Eb Gb |
| C+ or Caug | C augmented | C E G# |
| C5 | Power chord | C G |
