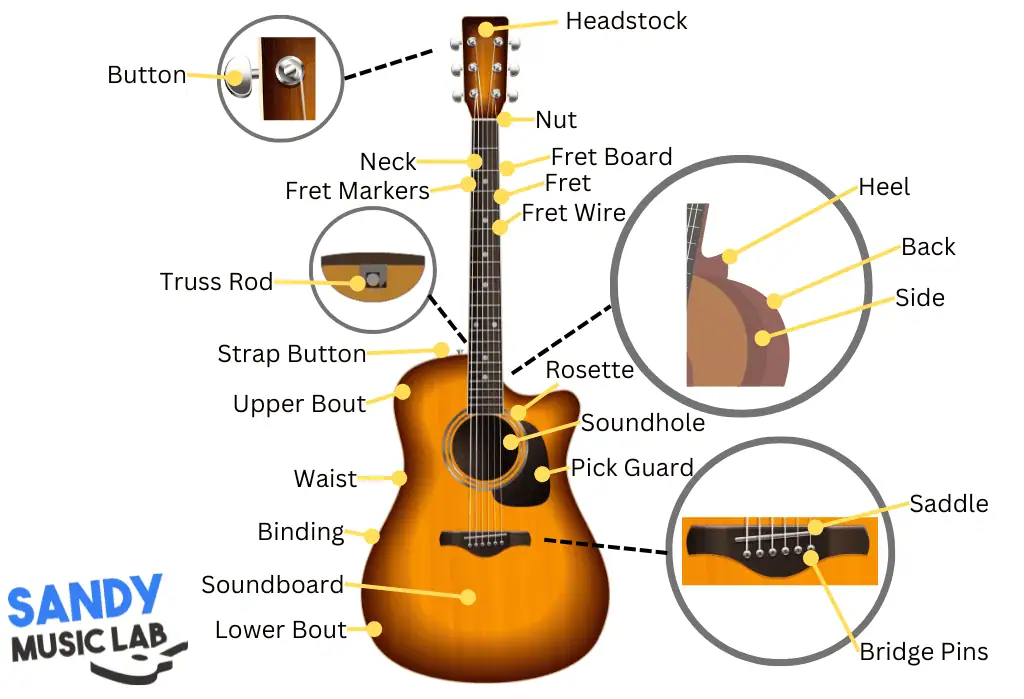

The diagram below shows the anatomy of an acoustic guitar and shows the different parts of the acoustic guitar diagram. Keep in mind that some guitars will have variations such as not having a pickguard or a truss rod but the components below for the most part are common on all acoustic guitars.
Acoustic Guitar Anatomy: Headstock
The headstock is an important part of an acoustic guitar’s anatomy. It is located at the end of the guitar neck and is responsible for holding the tuning pegs or machine heads. The tuning pegs allow the guitarist to adjust the tension of each string and tune the guitar to the desired pitch.
The headstock is typically made from the same type of wood as the guitar neck and is shaped to match the overall design of the instrument. The shape of the headstock can vary depending on the manufacturer and the guitar model, but it generally includes a curved or angled shape that allows the strings to pass through and over the nut, which is located at the end of the fingerboard.
The headstock can also be a decorative element of the guitar, with some models featuring intricate inlay designs or logos. In addition to its functional role in holding the tuning pegs, the headstock can also affect the tone and resonance of the guitar. Some guitarists believe that the shape and size of the headstock can impact the overall sound of the instrument, although this is a topic of debate in the guitar community.
Acoustic Guitar Anatomy: Tuning Pegs / Machine Heads
The tuning pegs, also known as machine heads, are an important part of an acoustic guitar’s anatomy. They are located on the headstock at the end of the guitar neck and are responsible for holding and adjusting the tension of each guitar string.
Tuning pegs typically consist of a rotating knob or button and a gear mechanism that allows the guitarist to turn the knob and adjust the tension of the string. This adjustment changes the pitch of the string and allows the guitarist to tune the guitar to the desired notes.
There are several different types of tuning pegs available, including open-gear and enclosed-gear designs. Open-gear pegs have the gears exposed and are often used on vintage or traditional-style guitars. Enclosed-gear pegs have a housing that covers the gears and are typically found on modern acoustic guitars.
The quality of tuning pegs can vary depending on the manufacturer and the guitar model. Higher-end guitars often have higher-quality tuning pegs that are more precise and hold the tuning better. Lower-end guitars may have lower-quality tuning pegs that are more prone to slipping or going out of tune.
Overall, the tuning pegs are an essential component of the acoustic guitar that allow the guitarist to achieve the desired pitch and tone.
Acoustic Guitar Anatomy: Nut
The nut is an important part of an acoustic guitar’s anatomy, located at the end of the guitar’s fingerboard and just before the headstock. It is a small strip of material, typically made of bone, plastic, or synthetic materials, that is cut to size and shape to fit the width and spacing of the guitar strings.
The nut plays a crucial role in maintaining the proper spacing and height of the guitar strings as they pass over the fretboard and headstock. It also helps to define the length of the playable portion of the strings, and can have a significant impact on the overall tone and intonation of the guitar.
The height and spacing of the nut can be adjusted to help fine-tune the guitar’s intonation, which is the accuracy of each note’s pitch as it is played on different frets. Adjustments to the nut can be made by a guitar technician, and may involve filing or sanding the material to change its height or spacing.
Overall, the nut is an important part of an acoustic guitar’s anatomy that plays a critical role in maintaining proper string spacing, intonation, and tone.
Acoustic Guitar Anatomy: Neck
The neck is a fundamental part of an acoustic guitar’s anatomy, running from the headstock to the guitar’s body. It is a long, thin, and tapered piece of wood that supports the fingerboard and frets and provides the platform for the guitarist to play the instrument.
The neck typically consists of a piece of solid wood, such as mahogany or maple, and is reinforced with a truss rod to ensure that it remains straight and stable over time. The fretboard is glued to the top of the neck and typically made of a harder wood, such as rosewood or ebony, that allows for the guitar strings to vibrate freely and produce clear, sustained notes.
The neck also contains the frets, which are metal strips that are inlaid into the fretboard and provide the reference points for the guitarist to play specific notes and chords. The spacing and positioning of the frets are critical to the guitar’s intonation, which is the accuracy of each note’s pitch as it is played on different frets.
The neck can also be a decorative element of the guitar, with some models featuring intricate inlay designs or ornate woodwork. It can also have a significant impact on the guitar’s overall tone and sustain, with different neck shapes and woods affecting the way the guitar vibrates and resonates.
Overall, the neck is an essential part of an acoustic guitar’s anatomy that plays a critical role in supporting the fingerboard, frets, and strings and providing the platform for the guitarist to play the instrument.
Acoustic Guitar Anatomy: Frets And Fret Wires
Frets and fret wires are important components of an acoustic guitar’s anatomy. Frets are thin metal strips that are inlaid into the guitar’s fretboard, while fret wires are the metal rods that make up the frets.
The frets are spaced at precise intervals along the length of the fretboard and are responsible for dividing the playable length of the string into specific note intervals. When the guitarist presses down on a string behind a fret, it shortens the length of the string and raises its pitch, allowing the guitarist to play different notes and chords.
Fret wires can be made from different types of metal, such as nickel or stainless steel, and come in a range of sizes and shapes to fit different guitar models and playing styles. The height and thickness of the fret wires can also be adjusted to suit the guitarist’s preferences and playing style.
The quality of the frets and fret wires can vary depending on the guitar model and manufacturer. Higher-end guitars often have high-quality frets and fret wires that are precise and smooth, allowing for more accurate intonation and comfortable playing. Lower-end guitars may have lower-quality frets and fret wires that are more prone to wear and require more frequent maintenance.
Overall, the frets and fret wires are essential components of an acoustic guitar’s anatomy that play a critical role in defining the playable range of the guitar and allowing the guitarist to play a variety of notes and chords with accuracy and precision.
Acoustic Guitar Anatomy: Fret Markers / Inlays
Fret markers or inlays are decorative elements that are inlaid into the fretboard of an acoustic guitar. They serve both a functional and aesthetic purpose, helping the guitarist to identify specific frets while adding visual interest to the guitar’s appearance.
Fret markers can be made from a variety of materials, including mother of pearl, abalone, plastic, or wood, and can take many shapes and designs. Common shapes include dots, diamonds, triangles, or other geometric shapes, and some designs feature intricate patterns or images.
In addition to helping the guitarist locate specific frets, fret markers can also be used to indicate certain positions on the fretboard, such as the 3rd, 5th, 7th, 9th, and 12th frets, which are commonly used for chord shapes and soloing.
The quality and design of fret markers can vary depending on the guitar model and manufacturer. Higher-end guitars may feature more intricate and decorative inlays, while lower-end guitars may have simpler designs or no inlays at all.
Overall, fret markers or inlays are an important part of an acoustic guitar’s anatomy, providing both functional and aesthetic benefits that enhance the guitarist’s playing experience and add to the guitar’s visual appeal.
Acoustic Guitar Anatomy: Truss Rod
The truss rod is an essential component of an acoustic guitar’s anatomy that helps to maintain the neck’s structural integrity and stability over time. It is a metal rod that runs the length of the guitar neck and is embedded into the wood.
The truss rod allows the guitarist to adjust the amount of relief, or bow, in the neck by applying or releasing tension on the rod. This adjustment is necessary because the neck of the guitar can be affected by changes in temperature, humidity, and string tension, which can cause it to warp or bend over time.
The truss rod is typically accessed through an opening in the headstock of the guitar and can be adjusted using a specialized tool called a truss rod wrench. The amount of relief that is appropriate for a guitar depends on the player’s preference and playing style, as well as the specific guitar model.
Adjusting the truss rod requires some technical skill and should only be done by a qualified guitar technician, as improper adjustments can damage the guitar and affect its playability and tone.
Overall, the truss rod is an important component of an acoustic guitar’s anatomy that helps to ensure the guitar remains structurally sound and playable over time.
Acoustic Guitar Anatomy: Fretboard / Fingerboard
The fretboard or fingerboard is an essential component of an acoustic guitar’s anatomy, located on top of the neck and containing the frets and fret markers.
The fretboard is typically made from a harder wood, such as rosewood or ebony, that allows for the guitar strings to vibrate freely and produce clear, sustained notes. It is also coated with a layer of finish or oil to protect the wood and make it easier to play.
The frets are thin metal strips that are inlaid into the fretboard at precise intervals and are responsible for dividing the playable length of the string into specific note intervals. The fret markers are decorative elements that are inlaid into the fretboard to help the guitarist identify specific frets, with common shapes including dots, diamonds, or other geometric designs.
The fretboard also plays an important role in the guitar’s overall tone and sustain, with different woods and finishes affecting the way the guitar vibrates and resonates. The size and shape of the fretboard can also affect the playability of the guitar, with wider fretboards allowing for more space between the strings and narrower fretboards being more suitable for smaller hands.
The quality of the fretboard and fret markers can vary depending on the guitar model and manufacturer, with higher-end guitars often featuring more intricate inlays and higher-quality woods.
Acoustic Guitar Anatomy: Heel / Neck Joint
The heel or neck joint is an important part of an acoustic guitar’s anatomy where the neck meets the body of the guitar. It is located at the base of the neck and provides a solid connection between the neck and the body of the guitar.
The heel is typically made from the same type of wood as the guitar neck and is shaped to fit snugly into a corresponding cavity in the body of the guitar. The joint is often reinforced with glue or screws to ensure that it remains stable and secure over time.
The shape and design of the heel and neck joint can vary depending on the guitar model and manufacturer. Some guitars have a traditional square-shaped heel joint, while others have a rounded or contoured design that provides easier access to the upper frets.
The quality of the heel and neck joint can also affect the guitar’s tone and sustain, with a well-made joint providing a more stable platform for the strings to vibrate and resonate.
Overall, the heel or neck joint is an important part of an acoustic guitar’s anatomy that provides a critical connection between the neck and body of the guitar, affecting the guitar’s playability, tone, and overall structural integrity.
Acoustic Guitar Anatomy: Back And Sides
The back and sides are important parts of an acoustic guitar’s anatomy, providing structural support and contributing to the guitar’s overall tone and resonance.
The back is the curved panel of wood located on the opposite side of the soundboard, which is responsible for reflecting and projecting the sound waves produced by the strings. The back is typically made from a hardwood, such as rosewood or mahogany, and is often reinforced with bracing to ensure that it remains stable and durable over time.
The sides are the panels of wood that connect the back and the soundboard, forming the body of the guitar. Like the back, the sides are typically made from a hardwood and are also reinforced with bracing to provide structural support and enhance the guitar’s tonal qualities.
The size and shape of the back and sides can vary depending on the guitar model and manufacturer, with some guitars featuring a more curved or contoured design for increased resonance and projection. The quality of the materials used in the construction of the back and sides can also affect the guitar’s tone and sustain, with higher-quality woods typically providing a more desirable sound.
Acoustic Guitar Anatomy: Lower Bout, Waist, And Upper Bout
The lower bout, waist, and upper bout are important parts of an acoustic guitar’s anatomy, defining the overall shape and profile of the guitar.
The lower bout is the widest part of the guitar body, located at the bottom of the guitar. It is typically rounded or curved and provides a large surface area for the soundboard to vibrate and resonate.
The waist is the narrowest part of the guitar body, located in the middle of the guitar. It provides a comfortable and ergonomic grip for the guitarist and also contributes to the guitar’s tonal qualities by creating a smaller resonance chamber.
The upper bout is the area of the guitar body that sits above the waist and is typically narrower than the lower bout. It contributes to the guitar’s overall balance and aesthetic appeal, and can also affect the guitar’s tonal qualities by providing a smaller or more focused resonance chamber.
The size and shape of the lower bout, waist, and upper bout can vary depending on the guitar model and manufacturer, with some guitars featuring more exaggerated curves or asymmetrical designs for increased resonance and projection.
Acoustic Guitar Anatomy: Sound Hole
The sound hole is an essential component of an acoustic guitar’s anatomy, located on the top of the guitar body directly below the strings. It is a circular opening that allows the sound waves produced by the vibrating strings to escape from the body of the guitar, creating the guitar’s sound.
The size and shape of the sound hole can vary depending on the guitar model and manufacturer, with some guitars featuring larger or more elaborate designs for increased resonance and projection. The sound hole is typically reinforced with a decorative rosette, which is a ring of inlaid material that adds visual interest to the guitar’s appearance.
The sound hole also plays an important role in the guitar’s overall tone and resonance. The size and placement of the sound hole can affect the guitar’s frequency response and tonal balance, with larger sound holes producing a fuller, more boomy sound and smaller sound holes providing a more focused, balanced sound.
The sound hole can also be a source of feedback or unwanted resonance at high volume levels, which can be addressed through the use of feedback suppressors or acoustic dampening materials.
Acoustic Guitar Anatomy: Rosette
The rosette is a decorative ring of inlaid material that surrounds the sound hole on the top of an acoustic guitar’s body. It is typically made from a combination of materials, such as wood, abalone, mother of pearl, or other decorative elements.
The rosette serves both an aesthetic and functional purpose, providing visual interest and enhancing the overall appearance of the guitar while also reinforcing the sound hole and preventing it from cracking or expanding over time.
The design and complexity of the rosette can vary depending on the guitar model and manufacturer, with some guitars featuring more elaborate designs that incorporate intricate patterns or images.
The quality of the rosette can also affect the guitar’s overall tone and resonance, with higher-quality materials and craftsmanship typically resulting in a more desirable sound.
Acoustic Guitar Anatomy: Pickguard / Scratch Plate
The pickguard, also known as the scratch plate, is a protective cover that is attached to the front of an acoustic guitar’s body, typically located below the sound hole and above the strings.
The pickguard serves a practical purpose by protecting the guitar’s finish from scratches and other damage that can be caused by the pick or the guitarist’s fingernails. It also serves an aesthetic purpose by providing a decorative element that can enhance the guitar’s appearance.
The pickguard can be made from a variety of materials, including plastic, tortoiseshell, wood, or other decorative elements. It can take many shapes and designs, ranging from simple, solid colors to more intricate patterns and images.
The placement and design of the pickguard can vary depending on the guitar model and manufacturer, with some guitars featuring larger or more elaborate designs for increased protection or visual appeal.
Overall, the pickguard is an important component of an acoustic guitar’s anatomy that serves both a practical and aesthetic purpose, protecting the guitar’s finish while also adding to its overall appearance.
Acoustic Guitar Anatomy: Binding
Binding is a decorative and protective element that is found on the edges of an acoustic guitar’s body, typically located on the top, back, and sides. It is a strip of material, such as plastic, wood, or other decorative elements, that is attached to the edges of the guitar’s body.
The binding serves both a practical and aesthetic purpose. It protects the guitar’s edges from damage and wear, particularly on the top and back where the wood can be more fragile. It also adds visual interest to the guitar’s appearance, with different materials and designs enhancing the overall look of the instrument.
The quality and design of the binding can vary depending on the guitar model and manufacturer. Higher-end guitars often feature higher-quality bindings made from more exotic materials, while lower-end guitars may have simpler bindings made from more affordable materials.
Binding can also be used in combination with other decorative elements, such as inlay or purfling, to create intricate and ornate designs that enhance the guitar’s visual appeal.
Overall, binding is an important component of an acoustic guitar’s anatomy that serves both a practical and aesthetic purpose, protecting the guitar’s edges while also adding to its overall appearance.
Acoustic Guitar Anatomy: Soundboard
The soundboard is a critical component of an acoustic guitar’s anatomy, located on the top of the guitar’s body directly below the strings. It is a thin, flat panel of wood that is responsible for amplifying the sound waves produced by the vibrating strings and projecting the guitar’s sound.
The soundboard is typically made from a high-quality spruce or cedar wood that is chosen for its resonant qualities and ability to vibrate freely. It is often reinforced with internal bracing, which helps to distribute the vibrations evenly across the surface of the soundboard and prevent it from warping or cracking over time.
The shape and size of the soundboard can also affect the guitar’s tone and resonance, with larger soundboards producing a fuller, more boomy sound and smaller soundboards providing a more focused, balanced sound.
The soundboard is also an important part of the guitar’s aesthetic appeal, often featuring decorative elements such as rosettes or inlays that enhance the guitar’s overall appearance.
Acoustic Guitar Anatomy: Bridge, Saddle, And Bridge Pins
The bridge, saddle, and bridge pins are essential components of an acoustic guitar’s anatomy that work together to hold and transmit the vibrations of the strings to the guitar’s body, creating the guitar’s sound.
The bridge is a flat, often decorative piece of wood that is located on the top of the guitar’s body and holds the strings in place. The bridge is typically made from a hardwood, such as rosewood or ebony, that is chosen for its durability and ability to transmit the strings’ vibrations to the guitar’s body.
The saddle is a small piece of material, often made from bone or synthetic materials, that sits on top of the bridge and provides a point of contact for the strings. The saddle is responsible for transmitting the vibrations of the strings to the soundboard, contributing to the guitar’s overall tone and resonance.
The bridge pins are small, often decorative pieces of material, such as plastic or bone, that are located at the end of each string and hold the strings securely in place on the bridge.
The quality of the bridge, saddle, and bridge pins can vary depending on the guitar model and manufacturer, with higher-end guitars often featuring higher-quality materials and craftsmanship for improved sound and playability.
Acoustic Guitar Anatomy: Bracing
Bracing is a structural element of an acoustic guitar’s anatomy that provides support and stability to the guitar’s top, back, and sides, while also contributing to the guitar’s tonal qualities.
Bracing is typically made from small strips or bars of wood that are glued to the inside of the guitar’s body, creating a network of reinforcement that helps to distribute the vibrations of the strings evenly across the guitar’s body.
The bracing pattern and design can vary depending on the guitar model and manufacturer, with different patterns and designs contributing to the guitar’s unique tone and projection. Bracing is often more extensive on the top of the guitar, where it is responsible for transmitting the vibrations of the strings to the soundboard and enhancing the guitar’s overall resonance and projection.
The quality of the bracing can also affect the guitar’s tone and sustain, with higher-quality bracing typically resulting in a more desirable sound.
Anatomy of an Acoustic Guitar (Parts of the Acoustic Guitar Diagram): Conclusion
In conclusion, the anatomy of an acoustic guitar is comprised of many essential parts that work together to create the guitar’s unique sound and character. From the headstock to the bracing, each guitar part plays a critical role in the instrument’s playability, tone, and overall structural integrity. Hopefully, the acoustic guitar diagram was valuable to visualize the parts of the guitar.
The headstock, tuning pegs, nut, neck, fretboard, frets, and fret markers all contribute to the guitar’s playability and ease of use for the guitarist, while the soundboard, back and sides, sound hole, and bridge all work together to create the guitar’s unique tone and projection.
Decorative elements such as the rosette, binding, and pickguard add to the guitar’s visual appeal, while structural components such as the truss rod and bracing provide essential support and stability.
Overall, the anatomy of an acoustic guitar is a complex and fascinating subject, with each component contributing in its own way to the guitar’s unique sound and character. Understanding the various parts of the guitar can help guitarists appreciate the instrument more fully and make informed choices when selecting or modifying a guitar.
